Goldthorpe, South Yorkshire

Precision CNC machining in South Yorkshire since 1984.

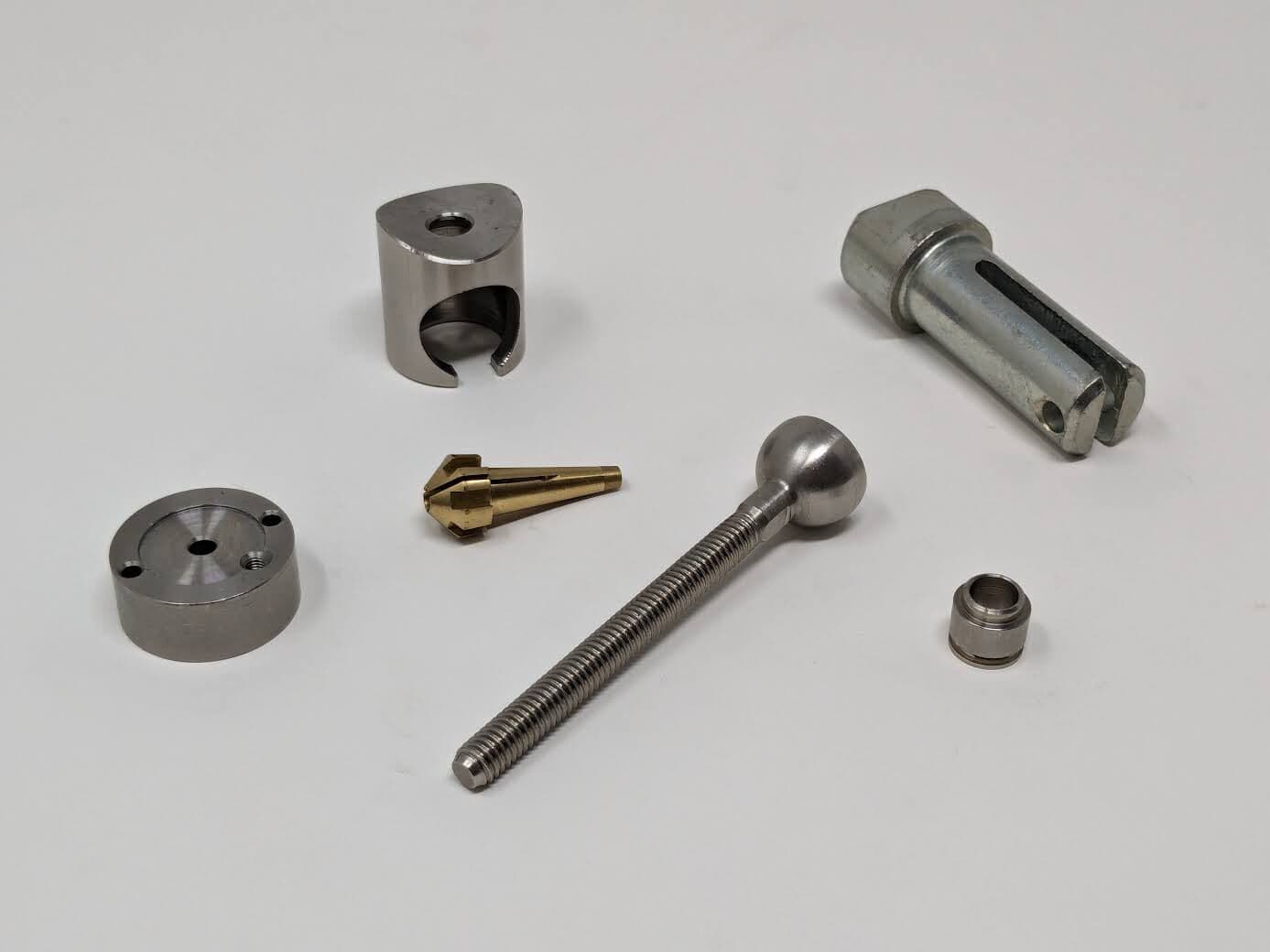

We machine finished components on sliding head lathes, turning centres and milling machines, in materials from brass and steel to nickel alloys, stainless steel and titanium. Our shift pattern and automation suit us to high volume, repeat batch work.

Request a quoteView the plant list
Years in business
42
CNC machines
23
Manned hours a week
1,600

Capabilities

We specialise in high volume, repeat batch work: scheduled parts called off month after month. Most components leave our machines finished. Where a part needs heat treatment, plating or grinding we use long-standing Sheffield sub-contractors, and we inspect the finished part before it is delivered.

All capabilities

Automation

Six Fanuc robots load our lathes and milling machines, so the cells keep cutting after the manned shifts end. Two manned shifts run from 6am to midnight during the week, and the robot cells run lights out.

Parts a month
80,000
Steel a month
100 tonnes

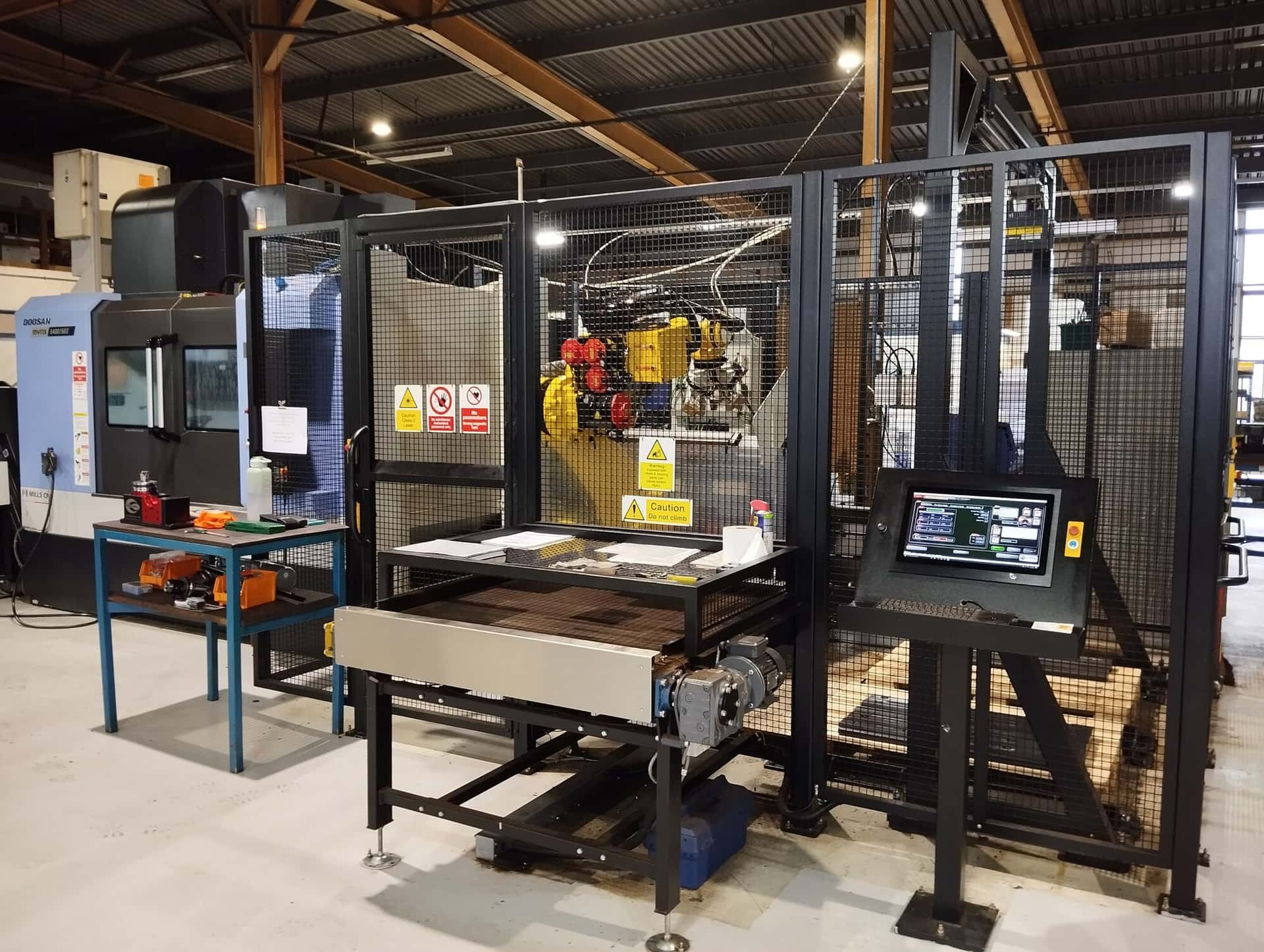

  • Robot loaded milling cell machining rail fishplates

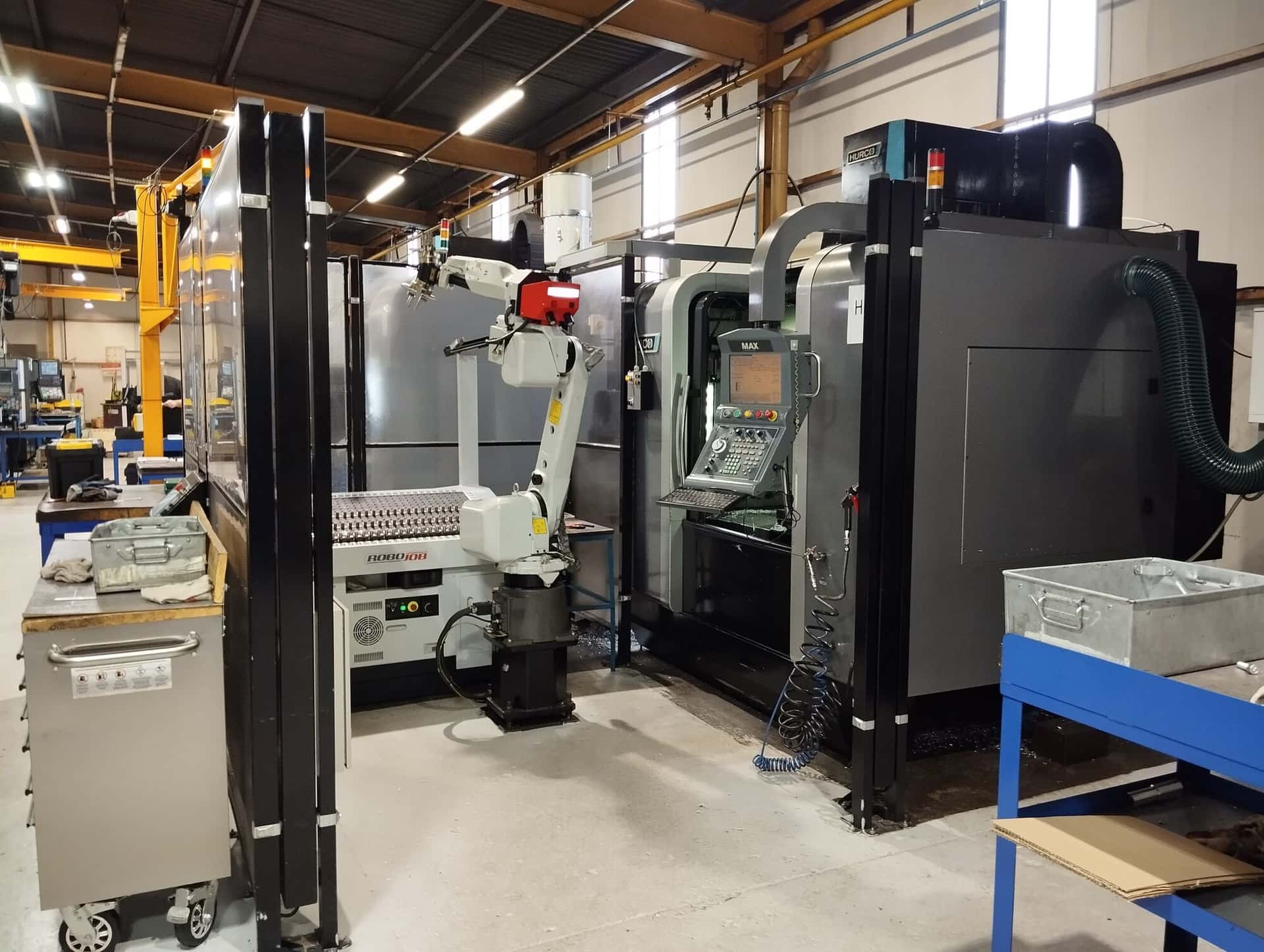

  • Fanuc robot loading a machining centre

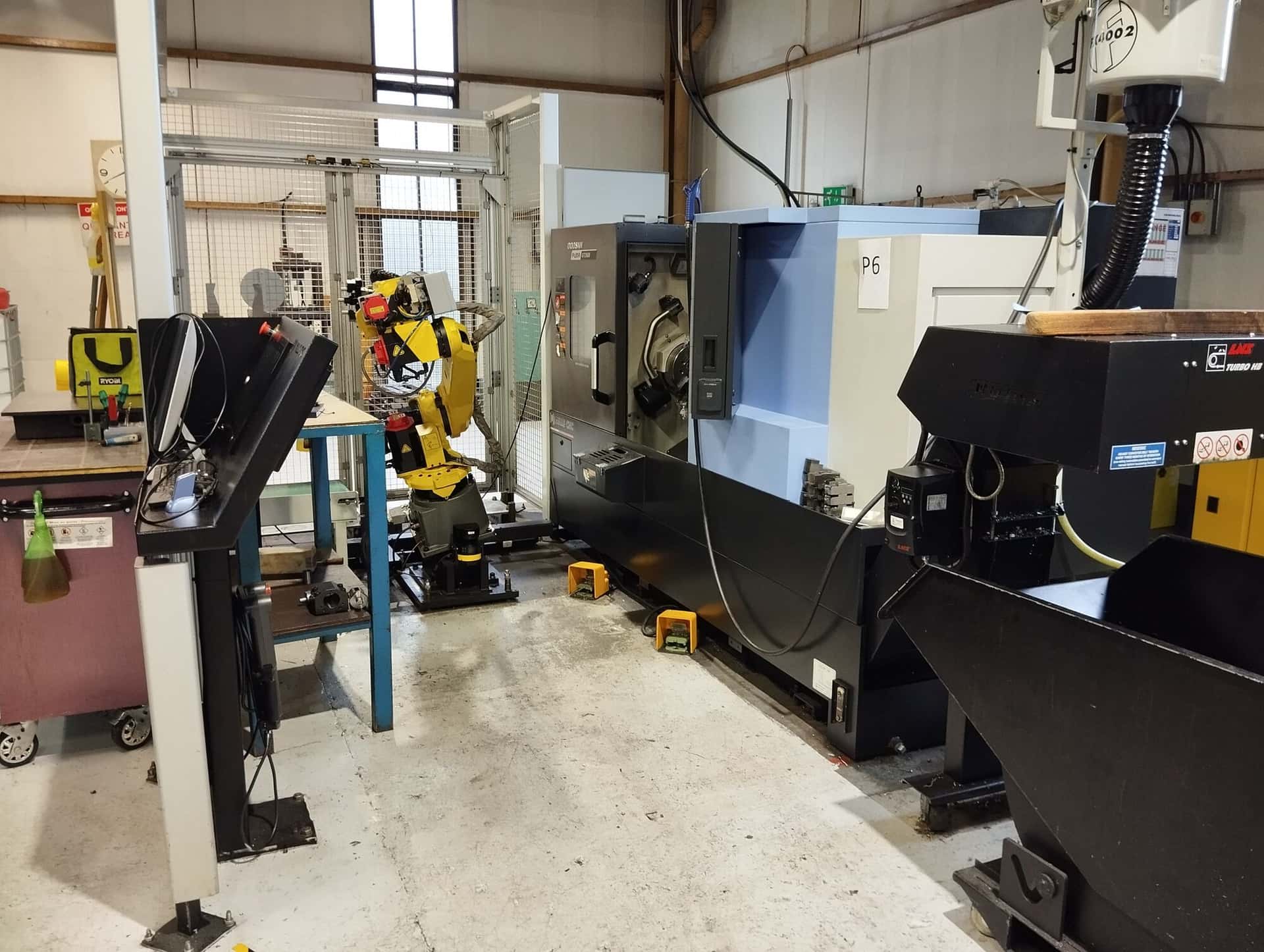

  • Robot loaded Doosan GT2600 turning cell

Plant list

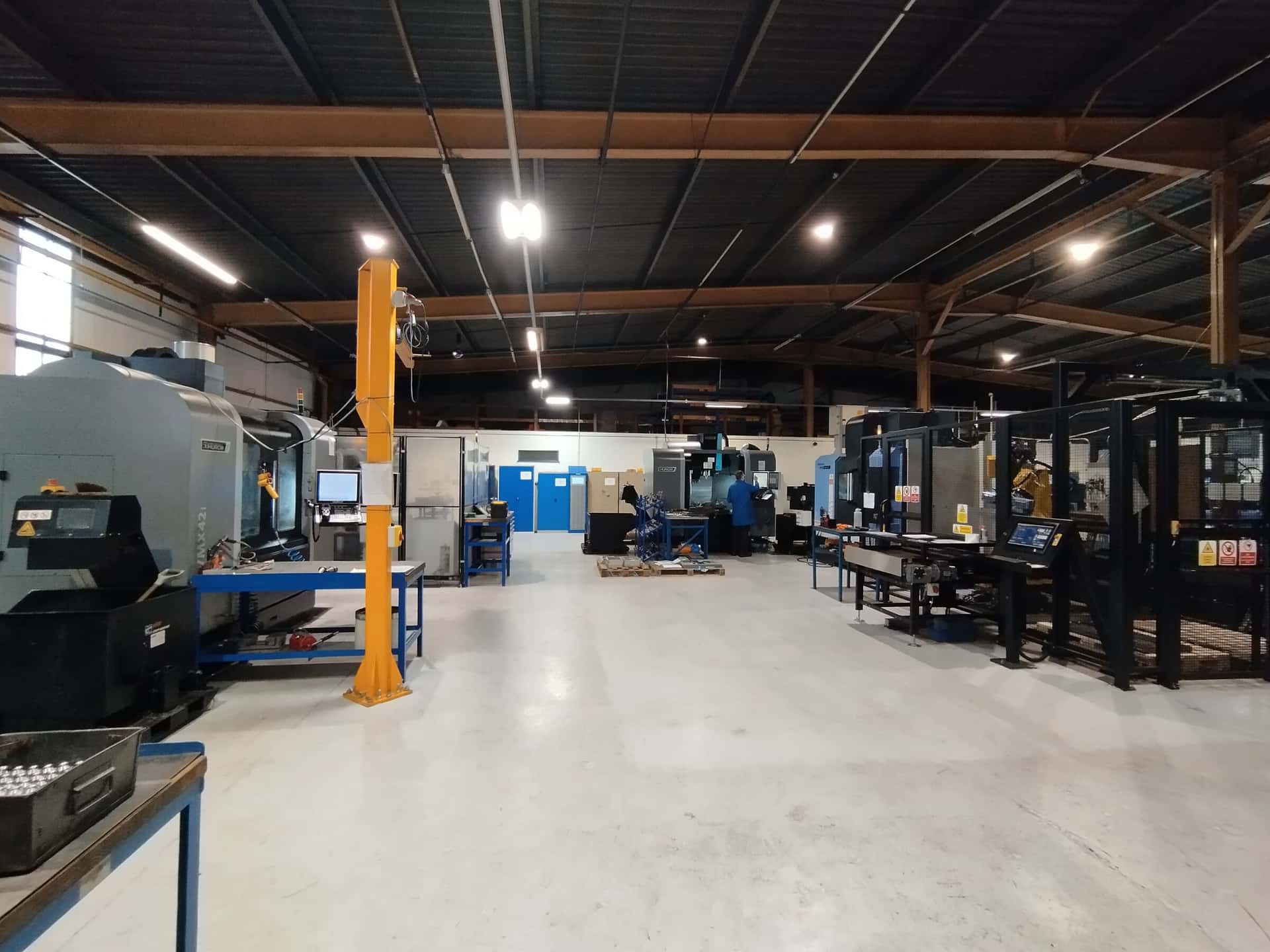

Every machine on the shop floor at Unit 2, Goldthorpe.

23 CNC machines, 6 robots, 5 inspection

Sliding head6 machines

  • 3×Star SR32-JII32mm bar · Sliding head mill/turn lathe with bar feeder
  • 1×Star SR3840mm bar · Sliding head mill/turn lathe with bar feeder
  • 1×Star SB2020mm bar · Sliding head lathe with bar feeder
  • 1×Tornos Deco 2025mm bar · 10-axis mill/turn sliding head lathe with 3m bar feeder

Turning10 machines

  • 2×Doosan Puma 3100M102mm bar, 12in chuck · Bar-fed turning centre, C-axis live tooling, tailstock, 250kg hoists
  • 1×Doosan Puma 2100SY65mm bar · Bar-fed turning centre, C and Y-axis milling, sub-spindle
  • 1×Doosan Puma 2100S65mm bar · Bar-fed turning centre with sub-spindle
  • 1×Doosan Puma GT2600++ robotØ300mm chuck work · Turning centre with tailstock
  • 1×Doosan Puma GT2100Ø200mm chuck work · Turning centre with tailstock
  • 1×Doosan Lynx 220Ø220mm swing · Compact turning centre with tailstock
  • 2×Doosan DNT2600M++ robotFully automated cell · C-axis mill-turn machines with SMW chucks
  • 1×Doosan DNT2600M++ robotfrom November 2026Automated long part cell · C-axis mill-turn machine for long products, SMW travelling steady and tailstock

Milling7 machines

  • 1×Hurco VMX50i+1500 × 660mm bed · 50 taper 3-axis VMC, Nikken 4th axis, through-spindle coolant, Renishaw probing, 250kg hoist
  • 1×Hurco VMX42i1270 × 600mm bed · 40 taper 3-axis VMC, 18kW 12k spindle, through-spindle coolant, 250kg hoist
  • 1×Hurco VMX24i++ robot760 × 500mm bed · 40 taper 3-axis VMC, through-spindle coolant
  • 1×Doosan Mynx 5400++ robot1020 × 550mm bed · 50 taper VMC in a fully automated cell for the railway sector, Renishaw probing
  • 1×Doosan DNM 4500800 × 450mm bed · 40 taper 3-axis VMC, through-spindle coolant, Renishaw probing
  • 2×Brother TCS-2A480 × 360mm bed · 30 taper high-speed drill/tap centre with MicroLoc multi-vice clamping

Automation6 robots

  • 6×Fanuc Industrial robots15–40kg payload · 6-axis industrial robots loading our lathes and milling machines

Inspection5 machines

  • 1×Aberlink Axiom 900 CMM±0.001mm · 5-axis programmable CMM, offline programming, RTP-20 auto-indexing head
  • 1×Mitutoyo B231 CMM±0.001mm · 3-axis coordinate measuring machine for points, cylinders, planes and XYZ
  • 1×Keyence IM-8020Profile and thread form · Automated image measurement with rotary table and light probe
  • 1× Shadowgraph projectorProfile and thread form · Optical profile projector for new product and tooling development
  • 1×Pryor Dot-peen markerSerial, batch and 2D codes · Part marking for unique identification and traceability

Projects

All projects

Customer feedback

From our customer satisfaction survey.

  • Always quality products received from Beta Engineering on time.
  • Always a quick turnaround on orders. Always deliver on time.
  • Excellent all-round service.
  • We're very satisfied with the product and service you offer, hence the 100% score.

Quality and certification

Our quality system is certified to ISO 9001 by URS, a UKAS accredited body. Inspection equipment includes one manual and one fully automated CMM, a shadowgraph projector and a Keyence image measurement system for profiles and thread forms. A Pryor dot-peen marking machine gives unique part identification. Full material and part traceability, PPAP, FAIR and SPC are provided for aerospace, defence and marine customers.

  • ISO 9001 certified by URS, UKAS accredited
  • Made in Sheffield
Quality and certification

Daver Steels (Bar & Cable Systems) Ltd

Daver Steels joined the Beta Engineering group in 2016 and has its own works at Aldwarke, Rotherham. Daver Steels manufactures structural tie bar and compression strut systems for bridges, stadia and airports, and Beta machines the forks, couplers and pins for those systems.

daverbarandcable.co.uk

News

All news

New enquiries

New enquiries are welcome. We aim to provide a quick, competitive and accurate quotation free of charge.

Request a quote+44 (0) 1709 894 938
